1. Description
GT09L is a IP67 Rated 4G LTE/GSM/GPS tracker for car, motorcycle, scooters and e-bikes.
It's with superior receiver sensitivity, fast TTFF and 4G LTE design. And it can continuously report current position to backend server.
It has a built-in acceleration sensor, which can detect the moving/static and driving behavior and detect ignition state and SOS alarm and use microphone for real time voice monitoring and R232 for RFID reading and stop engine by remote. It has two custom IO inputs and two custom AD inputs, which can easily connect to sensors.
GT09L is developed by "openCPU" technology which brought lower cost, lower power consumption and fast response speed advantages. It’s reputed with have industrial level performance but on economical solution pricing.
2. Features and Specifications
|
Item |
Description |
|
|
Dimension |
98*52*18mm |
|
|
Power range |
8-36V DC/1.5A |
|
|
Working humidity |
5%~95% |
|
|
Operating temperature |
‐30℃~75℃ |
|
|
Internal backup battery |
180mAh/4.2V |
|
|
Data transmit |
4G LTE/GSM/SMS Communication |
|
|
LED indicator |
1: Red for network 2: Green for GPS 3: Bule for battery |
|
|
Input |
1: ACC detect(High input) 2: SOS detect(Low input) 3: Door detect(Low input) 4: Customize high input 5: Customize low input |
|
|
Output |
Immobilizer(cut engine) relay or buzzer |
|
|
AD |
Two input AD for Fuel or temperature or Customize |
|
|
RS232 |
One RS232 |
|
|
Microphone |
Support |
|
|
Accelerometer |
Built-in accelerometer |
|
|
4G chip |
FIBOCOM L610 |
|
|
4G/GSM frequency |
L610-CN |
LTE FDD: B1 B3 B5 B7 LTE TDD: B34 B39 B40 B41 GSM:900MHz/1800MHz |
|
L610-LA |
LTE FDD: B1 B2 B3 B4 B5 B7 B8 B28 B66 GSM:850MHz/900MHz/1800MHz/1900 MHz |
|
|
L610-EU |
LTE FDD: B1 B3 B7 B8 B20 B8 GSM:850MHz/900MHz/1800MHz/1900 MHz |
|
|
GPS chip |
ZKMICRO:ATGM332D(BDS+GPS) |
|
|
GPS sensitivity |
-160dB |
|
|
GPS position accuracy |
5 Meters |
|
|
4G/GSM Null zone data storage |
3000 Waypoints |
|
|
Position report |
Time based and distance(mileage) based and angle based |
|
|
Alarm alerts |
GEO Fence, speed over, power tamper and SOS(Panic),idle |
|
|
Configuration |
SMS + computer(USB configurator) + server |
|
|
OTA |
Support |
|
3 Main functions
- 4G LTE/GSM quad-band frequency
- Real time tracking by 4G/SMS/GPRS
- Over-speed alarm
- Move alarm
- Geo-fence alarm
- Built-in backup battery to realize power failure alarm
- Cut vehicle oil or circuit alarm
- ACC ignition and flame out inform
- Vibration alarm
- Voice monitoring
- SOS alarm
- Open the door alarm
- Smart sleep save power Mode
- AGPS function,receive GPS signals faster
- Built-in storage memory
- Custom input and ADC
4 Applications
- Motorcycle/Scooters/E-bikes
- Car
- Truck
5 Package Contents
- GT09L Tracker x 1PC
- Wire Harness x 1PC
Optional Accessories:
Microphone, Panic Button, Immobilizer Relay

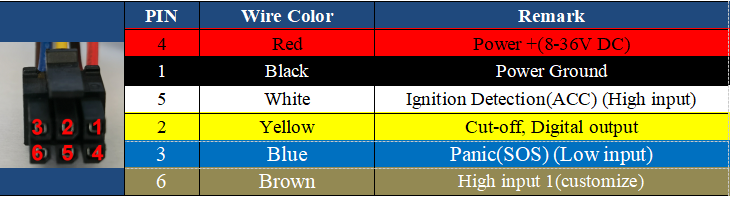

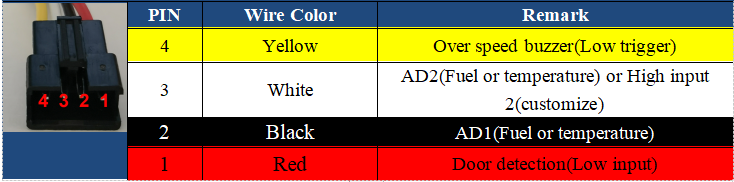

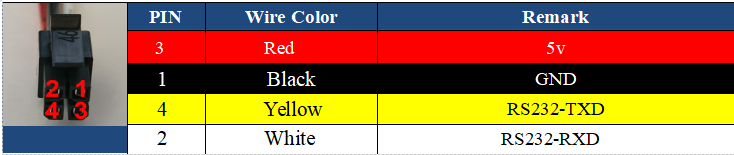

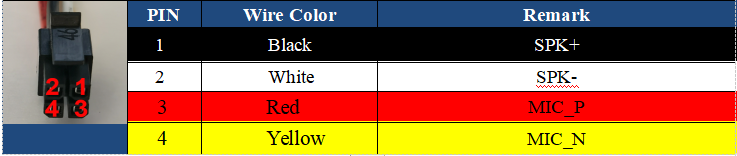

6 Wiring Diagram
