1 Introduction
1.1 Features
C50 is a 4G OBDII GPS tracker, It has the functions of OBD data collection, accurate location, geofence alarm, fatigue driving setting, power failure alarm, overspeed alarm, idle speed alarm, history trip playback.
It is used in the maintenance industry, insurance industry, corporate fleet industry, automobile manufacturers/4S shops, individual users, electric new energy fields, passenger vehicles, taxis, rental vehicles, etc.
1.2 OBD data
Vehicle Odometer, vehicle battery voltage, coolant temperature, OBD speed, engine rpm, engine load, instantaneous fuel consumption, intake air temperature, engine air capacity, manifold absolutely pressure, throttle position, fuel pressure measurement, VIN code.
1.3 Specification
|
Item |
Name |
Yes |
No |
Description |
|
|
Electrical |
OBD interface |
● |
|
J1962 OBDII |
|
|
Power supply |
● |
|
External power supply |
||
|
Working voltage |
● |
|
DC 9V - 35V |
||
|
Working current |
● |
|
12V/73.6mA |
||
|
Sleep current |
● |
|
12V/ 38.2mA |
||
|
Battery capacity |
● |
|
140 mAh (3.7V) |
||
|
Battery type |
● |
|
Lithium polymer battery |
||
|
Environment |
Working temperature |
● |
|
-20℃ - 75℃ |
|
|
Storage temperature |
● |
|
-30℃ - 80℃ |
||
|
Working humidity |
● |
|
10%-85% RH |
||
|
MCU |
MCU model |
● |
|
ARM stm32 |
|
|
Communication |
Communication module |
● |
|
QUECTEL EC200T (4G) |
|
|
Frequency |
● |
|
LTE |
LTE FDD: B1/B3/B5/B8
|
|
|
LTE TDD： B34/B38/B39/B40/B41
|
|||||
|
3G |
WCDMA :B1 |
||||
|
TD-SCDMA:B34/B39 |
|||||
|
EVDO/CDMA2000 1x :BC0 |
|||||
|
GSM/ EDGE |
B3/B8 |
||||
|
SIM card |
● |
|
Micro SIM card |
||
|
Antenna |
● |
|
Built-in antenna |
||
|
GPS/BD |
Positioning module |
● |
|
ZKMicro AT6558D |
|
|
Cold start |
● |
|
32 sec |
||
|
Hot start |
● |
|
1 sec |
||
|
Positioning accuracy |
● |
|
<10m |
||
|
Sensitivity |
● |
|
-162DBM |
||
|
Antenna |
● |
|
Built-in antenna |
||
|
External interface |
CAN wire |
● |
|
1 wire |
|
|
Microphone |
● |
|
Built-in microphone |
||
|
Appearance |
Dimension |
● |
|
58mm * 45mm * 22mm |
|
|
Material |
● |
|
ABS plastic |
||
|
IP level |
● |
|
IP65 |
||
|
Weight |
● |
|
54g |
||

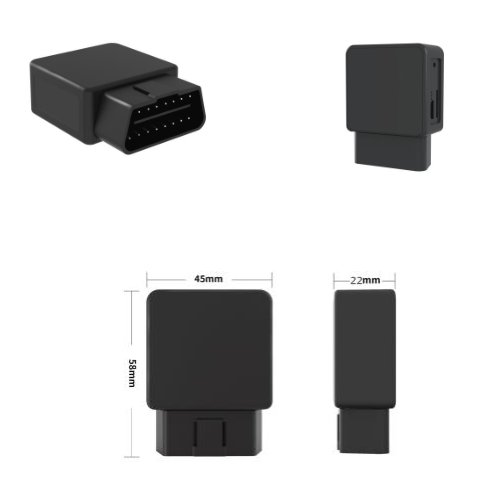

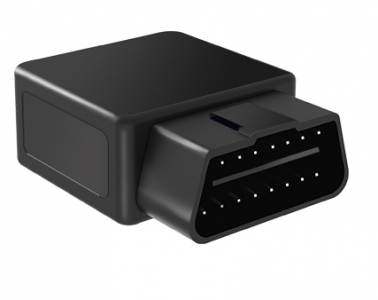

1.4 Product pictures
2 Accessories and LED light status
2.1Accessories
Standard: C50 tracker
2.2 LED working status
2.2.1 Red LED (Power/charge status)
|
status |
meaning |
|
On |
Working |
|
Off |
Power off/Sleep |
2.2.2 Yellow LED (GSM signal status)
|
status |
meaning |
|
Flashes once in 2 seconds |
GSM initialize |
|
On |
GPRS is online |
|
Off |
GSM sleep |
2.2.3 Blue LED (GPS signal status)
|
status |
meaning |
|
Flashes once in 2 seconds |
GPS signal searching |
|
On |
GPS fixed |
|
Off |
GPS sleep |
