1 SUMMARY
GT06 is a GSM/GPS tracker for car, motorcycle, scooters and e-bikes.
It's with superior receiver sensitivity, fast TTFF and GSM design. And it can continuously report current position to backend server.
GT06 is developed by "openCPU" technology which brought lower cost, lower power consumption and fast response speed advantages. It’s reputed with have industrial level performance but on economical solution pricing.
2 Specifications
Item
Description
Dimension
98*53*13mm
Power range
9-95v DC/1.5A
Working humidity
5%~95%
Operating temperature
‐30℃~75℃
Internal backup battery
180mAh/4.2V
Weight
65g
Network
GSM/GPRS
GSM frequency
850/900/1800/1900Mhz
GPS sensitivity
-159dBm
GPS accuracy
5 meters
GPS Fixed
Cold start
45s
Warm start
35s
Hot start
1s
LED indicator
1: Red for Power
2: Yellow for GSM
3: Blue for GPS
Input
1: ACC detect
2: SOS detect
3: Voice monitor
Output
1: Immobilizer(stop engine) by relay
Position report
Time based and angle based
Alarm alerts
GEO Fence, speed over, power tamper, SOS(Hijack), idle, Vibration alarm
Configuration
SMS + computer(USB configurator) + server
OTA
Support
3 Main functions
- GSM quad-band frequency
- Real time tracking by SMS/GPRS
- Over-speed alarm
- Move alarm
- Geo-fence alarm
- Built-in backup battery to realize power failure alarm;
- Cut vehicle oil or circuit alarm
- ACC ignition and flame out inform
- Vibration alarm
- Voice monitoring
- SOS alarm
- Open the door alarm
- Smart sleep save power Mode
- AGPS function,receive GPS signals faster
- Built-in storage memory
4 Applications
- Motorcycle/Scooters/E-bikes
- Car
- Truck
5 Package Contents
- GT06 Tracker x 1PC
- Wire Harness x 1PC
Optional Accessories:
Micrphone, Panic Button, Immobilizer Relay

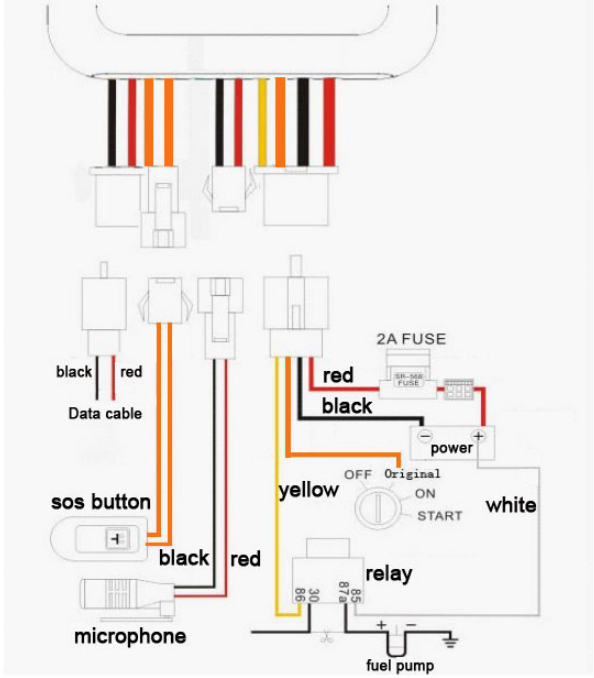

6 Device wiring diagram
