1.Key Features:
|
Item |
Name |
Yes |
No |
Description |
|
|
Electrical |
Power supply |
● |
|
Battery powered |
|
|
Charging voltage |
● |
|
DC 3.4V - 4.5V |
||
|
Working current |
● |
|
4V 50MA |
||
|
Sleep current |
● |
|
4V less than 1MA |
||
|
Battery capacity |
● |
|
5000/10000 mAh (3.7V) |
||
|
Battery type |
● |
|
Lithium polymer battery |
||
|
Environment |
Working temperature |
● |
|
-20℃ - 75℃ |
|
|
Storage temperature |
● |
|
-30℃ - 80℃ |
||
|
Working humidity |
● |
|
5%-95% |
||
|
Communication |
Communication module |
● |
|
QUECTEL EC200T (4G) |
|
|
Frequency |
● |
|
LTE |
FDD-LTE :B1/B3 |
|
|
TDD-LTE :B38/ B39/ B40/ B41 |
|||||
|
3G |
WCDMA :B1 |
||||
|
TD-SCDMA:B34/B39 |
|||||
|
EVDO/CDMA2000 1x :BC0 |
|||||
|
GSM/ EDGE |
B3/B8 |
||||
|
SIM card |
● |
|
Micro SIM card |
||
|
Antenna |
● |
|
Built-in antenna |
||
|
GPS/BD |
Positioning module |
● |
|
ZKMicro AT6558D |
|
|
Cold start |
● |
|
32 sec |
||
|
Hot start |
● |
|
1 sec |
||
|
Positioning accuracy |
● |
|
<10m |
||
|
Sensitivity |
● |
|
-162DBM |
||
|
Antenna |
● |
|
Built-in antenna |
||
|
External interface |
Microphone |
● |
|
Built-in microphone |
|
|
Light sensor |
● |
|
Built-in light sensor |
||
|
Serial port |
● |
|
3.3V Serial port |
||
|
Appearance |
Dimension |
● |
|
73.8mm * 69mm * 35.5mm(10000mA) 73.8mm * 69mm * 26.5mm(5000mA) |
|
|
Material |
● |
|
ABS plastic |
||
|
IP level |
● |
|
IP65 |
||
|
Strong magnetic |
● |
|
φ18mm*2.8mm *6 pcs Neodymium iron boron permanent magnet |
||
|
Weight |
● |
|
300g |
||
2. Description:

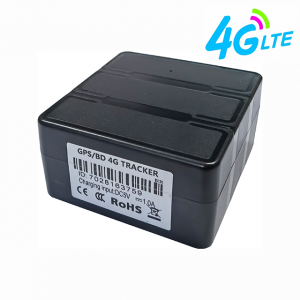

CT800 is a self-powered terminal with 4G LTE and GPS connectivity with long battery life, which is able to get device coordinates and transfer via 4G .The device is perfectly suitable for applications where location acquirement of self-powered remote objects is needed.
It's adopted dual tracking technology with traditional satellite track and CellID track, which can bring the user tracking experience even in NO GPS signal area.
Track your assets wherever they are!
3. Typical Application For:
- Container Tracking
- Car Loans Tracking
- Rail-carriage Tracking
- Transit goods tracking
4. Working mode
The device have 3 working modes.
4.1 Real-time mode
The device works by default 30 seconds (adjustable) to report location data once, and enters sleep after 3 minutes of inactivity. After sleep, it wakes up and sends location data every 5 minutes. When the device continues to vibrate, it will wake up.
4.2 Vibration Mode
The device works by default 30 seconds (adjustable) to report location data once, and enters sleep after 3 minutes of inactivity. After sleep there is no data transmission. When the device continues to vibrate, it will wake up.
4.3 Interval Mode
The device wakes up to report location according to the setting time interval and stays sleep at other times.
5 LED working status
5.1 Red LED (Power/charge status)
|
status |
meaning |
|
On |
Charging |
|
Off |
Battery full/Sleep |
5.2 Yellow LED (GSM signal status)
|
status |
meaning |
|
Flashes once in 2 seconds |
GSM initialize |
|
On |
GPRS is online |
|
Off |
GSM sleep |
5.3 Blue LED (GPS signal status)
|
status |
meaning |
|
Flashes once in 2 seconds |
GPS signal searching |
|
On |
GPS fixed |
|
Off |
GPS sleep |
6. Standard Package Contents:
- CT800 Tracker x 1PC
- USB Cable
- Information Paper card with User's Guide, Configurator and Technical document download link
- Dimentions:73.8(L) *69(W) *35.5 (H) mm
- Weight:0.3kg
