1.Features and Specifications

Item Name	Description
4G LTE Module	QUECTEL EC25
4G Frequency	Support global 4G frequency
GPS Receiver	Skylab GPS Receiver
MCU Processor	ARM STM32F103
Internal Memory	4MB(20000 Waypoints + Events)
Input Port	Ignition, Door, Panic, Charger Control, Microphone
Output Port	Buzzer, Immobilizer, Speaker, Door Central lock
AD	Two AD
RS232	Camera,Ultrasonic fuel sensor, RFID reader,Fingerprint device
Siren	For Speeding warning and Alarm warning
Backup Battery	650mAH/4.2V
LED Indicator	Red: Power; Green: GPS; Yellow: 4G LTE
USB	For Configuration and Upgrade firmware
Working Power Range	9-36V DC/1.8A
Consumption	Deep Sleep: <5mAh; Simple Sleep: < 30mAh; Standby:45-80mAh
Working Temp.	-25~+60
Unit Size	90*53*23mm
Weight	0.6Kg
Arm/Disarm	By Remote Control / SMS / Server
Data Transmit	SMS/4G Communication
OTA	Support



2. Description:

AS201L is a 4G/GPS alarm tracking box for multi applications.

This small unit is equipped with Quad Bands 4G module, Hi-sensitivity GPS receiver and 3D

Accelerometer. It’s also can be connected with optional wireless/wired accessories like fuel senor, RFID reader, iButton Probe Kit, Temperature senor, RF Key Fob, Camera, Fingerprint device, Alarm siren, Speaker, Microphone, SOS button, Remote control and Relay for external electronics device control.

It supports both GPS tracking and backup LAC/CID tracking, which brings an idea solution with no blind tracking both

indoor and outdoor.



 3.Data Report:

- Ignition On/Off

- Given time interval base

- Time,Direction,Ignition status,Mileage,Battery level,Door Status,Camera,Fuel,RFID,iButton,Acceleration,Fingerprint



4.Alarms Report:

- Door Open Alarm

- Ignition On Alarm

- Shock Alarm

- Accident Alarm

- Speed Over Alarm

- Power Disconnection Alarm

- Vehicle Battery Low Alarm

- Panic Help

- Geofence Area In/Out Alarm

- Harsh acceleration
- Harsh braking
- Harsh cornering

- Idle Alarm

- Anti-jamming Alarm



5.Remote Control Commands:

- Poll real time position

- Setup IP/Port, Device ID, Data report time interval

- Setup allow driving time period

- Stop engine / release startup

- Voice Listen-in authorization for once

- Setup Geofence



6. Applications:

- Motor-homes

- Boat &Yachts

- Car, truck, trailer and other special machinery like excavator or forklift or ATM)



 Standard Package Contents:

1) AS201L Box x 1PC

2) 4G LTE/GPS Antenna x 1PC for each

3) Microphone x 1PC

4) SOS button x 1PC

5) 18Pin Wire harness x 1PC

6) Cut-Off relay x 1PC

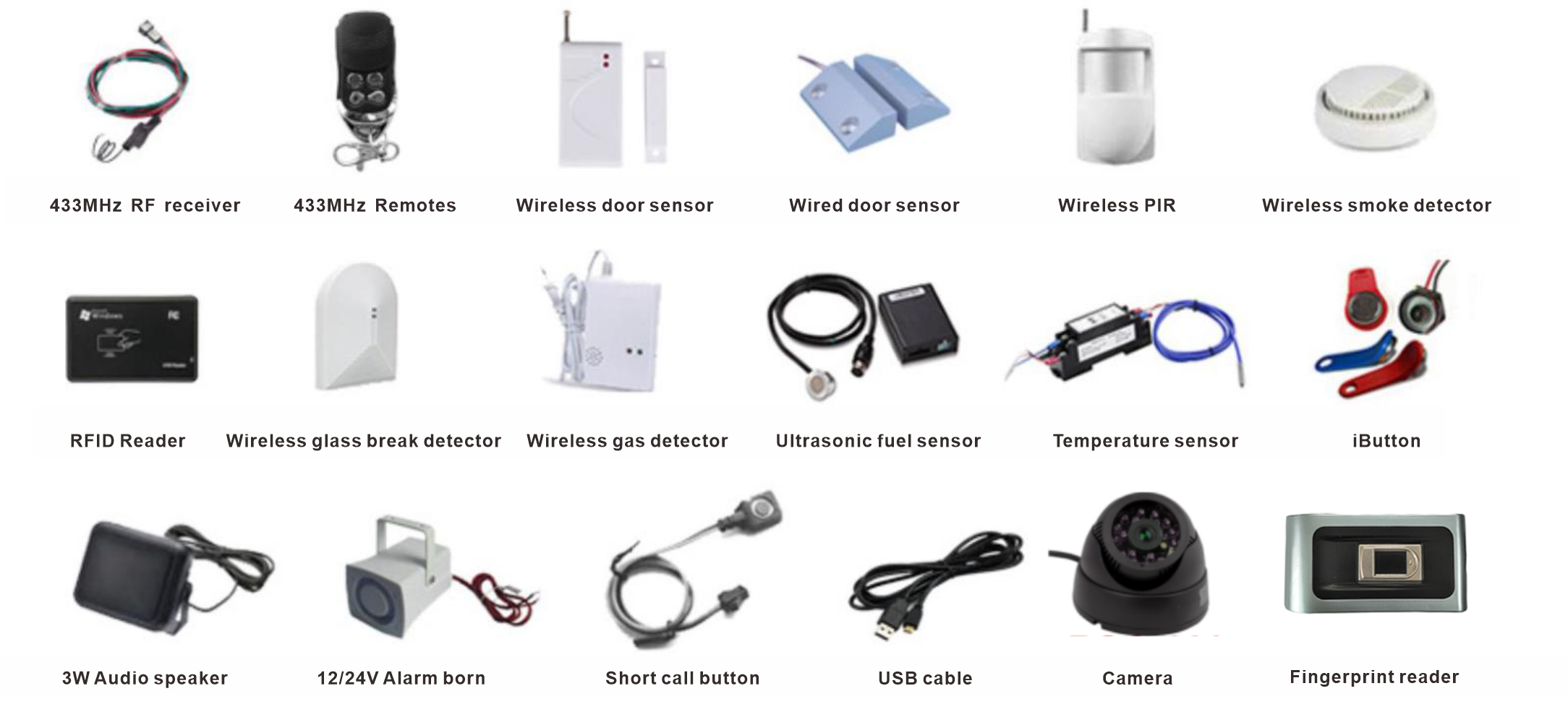

Optional Accessories:
