1.Features and Specifications

2. Description:

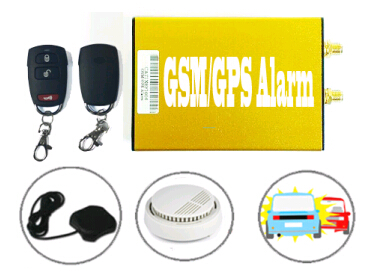

AS201E is a GSM/GPRS/GPS alarm tracking box for multi applications.
This small unit is equipped with Quad Bands GSM/GPRS module, Hi-sensitivity GPS receiver and 3D
Accelerometer. It’s also can be connected with optional wireless/wired accessories like fuel senor, RFID reader,
iButton Probe Kit, Temperature senor, RF Key Fob, Alarm siren and Relay for external electronics device control.

It supports both GPS tracking and backup LAC/CID tracking, which brings an idea solution with no blind tracking
both indoor and outdoor.

3. Power Supply:
- Voltage: 9-36V DC
- Power Consumption:
- 40-80mA(All active)
- Simple Sleep:<15mA (GSM ON, GPS Off, Alarm trigger active)
- Deep Sleep: <5mA (GSM Off, GPS Off, Alarm trigger active)
- Internal Battery:680mAH, 4.2V

4. GPS Module:
- Antenna: Internal
- Receiver: skylab SKG 12BL
- Sensitivity: -162dBm
- Navigation Update: 1Sec
- TTFF: Cold Starts: 29s/Aided Starts: <1S/ Hot Starts: <1S

5. GSM Module:
- Antenna: External
- Module: QUECTEL M35, Frequency Bands:850/900/1800/1900(MHz)

6. Internal Memory
- 4MB(20000 Waypoints + Events)

7. Voice Monitor
- Two-way voice monitoring.

8. I/O Input
- Ignition on/off detection
- Door open/close detection
- SOS(Panic) detection
- One call button

- Monitoring microphone

- AD input (Temperature sensor)

9. I/O output
- Engine cut off(Immobilizer)

- Voice speaker

- Central locking control

- iButton kit

10. Event Report:

- Door Open Alarm
- Ignition On Alarm
- Shock Alarm
- Accident Alarm
- Speed Over Alarm
- Power Disconnection Alarm
- Vehicle Battery Low
- SOS(Panic) Help
- GEO Area In/Out
- Prohibit driving time Alarm
- Idle Alert
- Harsh Acceleration
- Harsh Breaking

 11.Serial port:

- Image camera

- Ultrasonic fuel sensor

- RFID reader

12.RF 433 module:

- Remote control

- Wireless sensor

13. Applications:

- Car, truck, trailer and other special machinery like excavator and forklift
- Motor Homes
- Boats & Yacht

14. Package Contents and optional Accessories:

1) AS201E Box x 1PC

2) GSM/GPS Antenna x 1PC for each

3) Microphone x 1PC

4) SOS button x 1PC

5) 18Pin Wire harness x 1PC

6) Cut-Off relay x 1PC

Optional Accessories:
