2. Description:

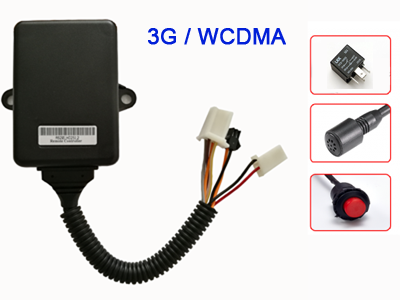

AS200G is a IP67 Rated 3G/GPS alarm tracking box for multi applications.

This small unit is equipped with 3G module, Hi-sensitivity GPS receiver and 3D Accelerometer. It’s also can be connected with relay for external electronics device control.

It supports both GPS tracking and backup LAC/CID tracking, which brings an idea solution with no blind tracking both indoor and outdoor.

3. Power Supply:
- Voltage: 9-36V DC
- Power Consumption:
- 40-80mA(All active)
- Simple Sleep:<15mA (3G ON, GPS Off, Alarm trigger active)
- Deep Sleep: <5mA (3G Off, GPS Off, Alarm trigger active)
- Internal Battery:680mAH, 4.2V

4. GPS Navigation:
- Antenna: Internal
- Receiver: skylab SKG 12BL
- Sensitivity: -162dBm
- Navigation Update: 1Sec
- TTFF: Cold Starts: 29s/Aided Starts: <1S/ Hot Starts: <1S

5. 3G module:
- Antenna: Internal
- Module: UC15-E/A, Frequency Bands:850/1900/900/2100MHz

6. Internal Memory
- 4MB(20000 Waypoints + Events)

7. Voice Monitor
- One-way voice monitoring.

8. I/O Input
- Ignition on/off detection
- Door open/close detection
- SOS(Panic) detection

9. I/O output
- Engine cut off(Immobilizer)

10. Event Report:

- Door Open Alarm
- Ignition On Alarm
- Shock Alarm
- Accident Alarm
- Speed Over Alarm
- Power Disconnection Alarm
- Vehicle Battery Low
- SOS(Panic) Help
- GEO Area In/Out
- Prohibit driving time Alarm
- Idle Alert
- Harsh Acceleration
- Harsh Breaking

 11. Applications:

- Car
- Truck
- Bus
- Taxi
- Motorcycle/ATVs
- Motor Homes

- Boats & Yacht

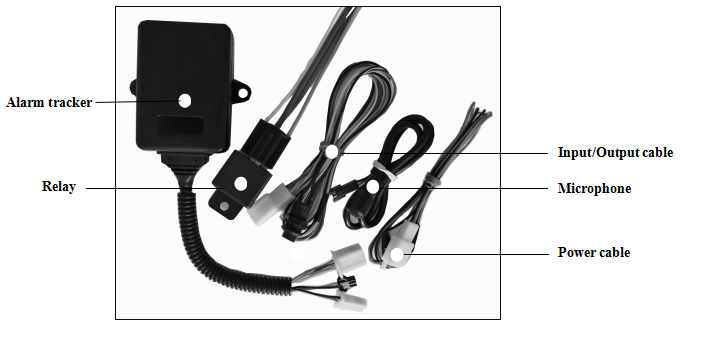

12. Package Contents and optional Accessories:
