Edit ContentTS500A
Category: Vehicle Tracker
Publish Time: 2015-07-11 18:53
_lit.png)
1.Introduction:
TS500A is an Android OS based All-in-One telematics terminal which is featured with:
- 7 Inch big industrial capacitive LCD Screen
- Android 4.2 OS
- Support 3G, GPS Tracking and Navigation WIFI, Bluetooth
- IP65 rugged industrial Telematics Terminal
- 4CH Video Inputs and multi IOs available
2. Suitable Applications:
3. Specifications:
| Specification | Description | |
| CPU | Arm | Dual core Cortex-A7, 1GHz |
| OS | Android 4.2 | |
| Memory | ROM (SLC/MLC) | 4G NAND Flash |
| RAM(DDR) | DDR3 1GB | |
| Extend Slot | Micro SD (64G) and TF Card | |
| Display | Type | 7 Inch TFT-LED QVGALCD Color Screen Touch Capacitance |
| Resolution | QVGA (800X480) | |
| Physical Buttons | Keyboard | Power Button, F1 and F2 customizable functionality buttons |
| Standard Communication | Wifi Connection |
Built-in 802.11b/g wireless wifi module |
| Bluetooth | V4.1 | |
| Digital Inputs | Total 4: 1 standard for Ignition, and 3 as customziable definition | |
| Digital Ouputs | Total 2: one for 12V Control, one for 5V control | |
| Analogue Input | 1 | |
| Uart | 3 RS232 Ports | |
| RS485 | 1 | |
| USB Host 2.0 | 1 | |
| USB Device 2.0 | 2 | |
| Speaker | 8R/1.5W | |
| Microphone | Built-in | |
| Video | 4Channel Video Inputs, Hardware Decoding H.264 | |
| GPS | Built-in GPS receiver and Antenna, External GPS antenna with SMA Connector standard | |
| GSM |
Internal Antenna, Built-in 3G modem :UMTS/HSDPA:900/2100MHz,GSM/GPRS:900/1800MHz; Max.3.6Mbps (D |
|
| Power | External Power Range | 8-32V DC |
| Standby Internal Battery | 600mAH | |
| IP Rated | IP65 | |
| Mechanical | Dimension | 29*123*193mm |
| Net Weight | 670g | |

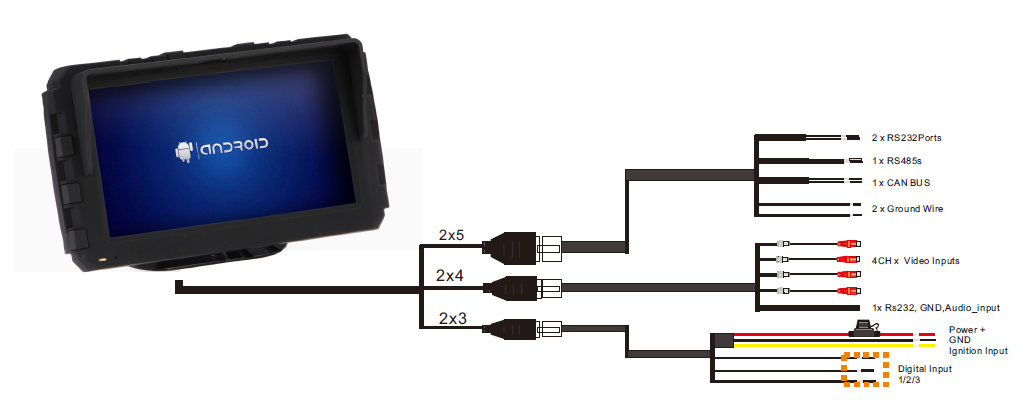

4. I/O Diagram

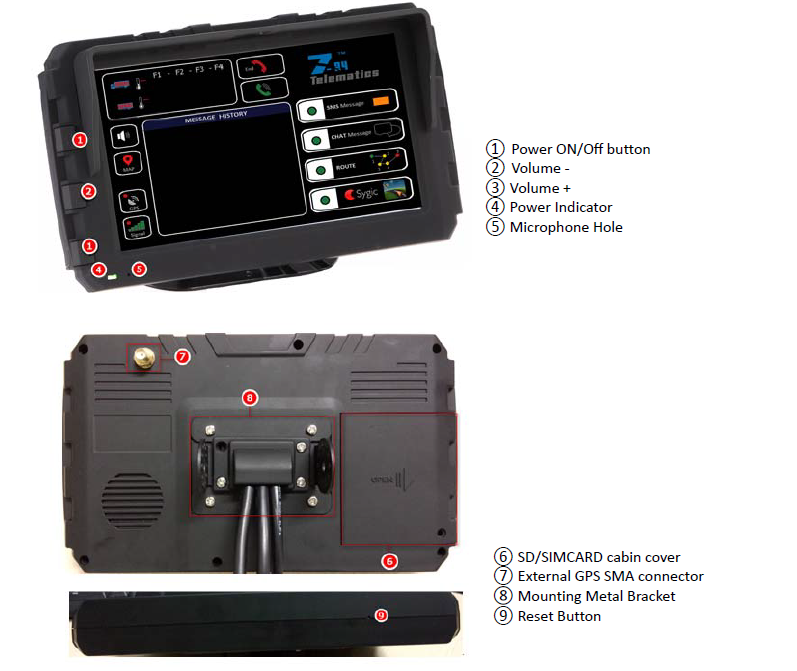

5.Product Image:
6.Product Reliability Standards:
- Working environment temperature: -20 ℃ ~ + 70 ℃
- Storage temperature: -40 ℃ ~ + 80 ℃
- Vibration test: 5-300HZ, 2G
- Product 3C mandatory product certification requirements by Chinese nation.
- Free drop test: Test methods and results should meet the requirements of GB / T19056-2003's.
- Immunity Test: Test methods and results should meet the requirements of GB / T19056-2003's.
- Mechanical environmental testing: Test methods and results should meet the requirements of GB / T19056-2003's.
- Climatic environmental test: Test methods and results should meet the requirements of GB / T19056-2003's.
- UL); Max.3.6Mbps (DL).
