Item |
Description |
|
Dimension |
90*60*35mm |
|
Construction |
Hard molded ABS plastic |
|
Working Humidity |
5%~95% |
|
Operating Temperature |
‐30℃~75℃ |
|
Internal backup battery |
5400 mAh 3.6V, non-rechargeable 4400 mAh 4.2V, rechargaeble |
|
Data Transmit |
SMS/GPRS Communication |
|
GSM Quad bands |
850/900/1800/1900MHz |
|
GPS chip |
Sirf III chip |
|
GPS Sensitivity |
-160dB |
|
GPS Position Accuracy |
10 Meters |
|
Internal Memory |
4 MB ( Up to 10000Points storage capability) |
|
Position report |
Time based Position report with interval configurable |
|
Power Consumption |
Sleep: <25 uAh; Standby:25 mAh |
|
Waterproof |
IP67 waterproof |
2. Description:

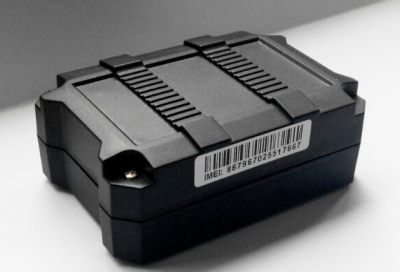

CT500 is a self-powered long battery lifetime GSM/GPS tracker; it has no external wires for connection,
which can be installed on any moving objects. It has simply designed appearance with internal battery and
strong magnetic structure, 3 years working time, GPS/AGPS/Cell ID tracking supported.
3. Typical Application For:
- Loans Car
- Transit goods tracking
- Animals like Horse and cow
4. Battery working Life Time:
5. Physical Size:
6. Standard Package Contents:
- CT500 Tracker x 1PC
- Battery x 1PCS
- USB Configuration Cable
- Information Paper card with User’s Guide and Technical document download link
Notice:
* - Battery Lifetime is declared approximately and strongly depends on using conditions and device configuration (GSM/GPRS coverage, GPS visibility, configured parameters, temperature, place of mounting, batteries energy level etc).
