1.Features and Specifications
|
Item Name |
Description |
|
4G LTE/WCDMA Module |
QUECTEL EC-25/UC15 |
|
Frequency |
EC-25 LTE -FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B20/B28A/B66/B71 LTE-TDD B38/B40/B41 UC15-E UMTS/HSDPA:900/2100MHz GSM/GPRS:900/1800MHz UC15-A UMTS/HSDPA:850/1900MHz GSM/GPRS:850/900/1900MHz |
|
GPS Receiver |
Skylab |
|
MCU Processor |
ARM7 STM103FRET6 |
|
Internal Memory |
4MB(10000 Waypoints + Events) |
|
Input Port |
Door Detect, Power Disconnection Detect |
|
Backup Battery |
5000mAH / 7.4V rechargeable battery |
|
LED Indicator |
Red: Power; Green: GPS; Yellow:Network |
|
Working Power Range |
12-24V DC/1.8A |
|
Consumption |
Deep Sleep: <50μA; Standby:100-230mAh(3G)/100-200mAh(4G) |
|
Working Temp. |
-25℃~+60℃ |
|
Unit Size |
238*83*36mm |
|
Data Transmit |
SMS/GPRS/3G/4G Communication |
2. Description:

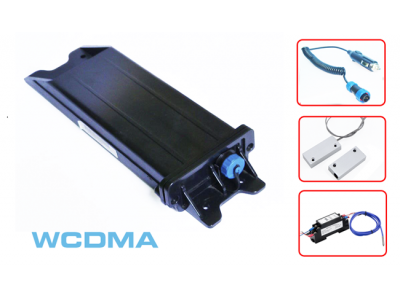

CT2000E is IP67 rated 4G LTE/WCDMA/GPS tracker for (Semi-) trailer truck tracking application
This tracker typically designed to solve the problem for those Semitrailers without power supply when truck head are disconnected. And need longer time plan for tracking with purpose. And these semitrailers need to more frequency tracking interval like with seconds’ level when truck head is connected.
Provided one digital and one analogue input can be used for monitoring door open/close and temperature application.
3. Applications:
- Trailer Truck
- Semitrailer
- Excavator
- Agriculture Machinery
4. Battery working Life Time:
When truck head is disconnected, CT2000E will switch to use internal battery. Please check following Time plan with the provided 5000mAH battery:
Total Tracking waypoints report times: 720 Times
|
Tracking frequency Scenes |
Lasting Work Time |
|
Report once Per Day |
720Days=1.98year |
|
Report Twice Per Day |
360Days=12Months |
|
Report every 6Hours (4Times Per Day) |
180Days=6Months |
|
Report every 4Hours |
120Days=4Months |
|
Report every 2Hours |
60Days |
|
Report every 1Hours |
30Days |
|
Report every 30Minutes |
15Days |
|
Report every 5Minutes |
60Hours |
You also can extend above working time by considering following factors:
- Static/Moving
- Remaining battery level
- GEO fencing Area status
Like default setting is every 4hours report data once, but when object in static, will switch to report every 10hours. By this you can extend your battery lasting time
5. Standard Package Contents:
- CT2000E Tracker x 1PC
- 5000mAH Rechargeable Lithium battery
- USB Configuration Cable
- Information Paper card with User’s Guide, Configurator and Technical document download link

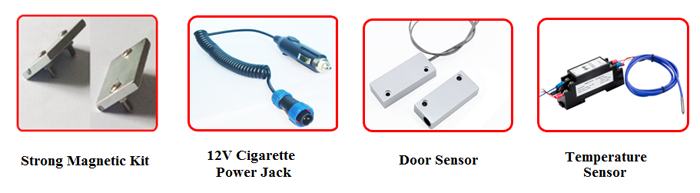

6-Optional Accessories:
