1.Features and Specifications
Item Name |
Description |
4G LTE/WCDMA Module |
QUECTEL EC-25/UC15 |
Frequency |
EC-25
LTE -FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B20/B28A/B66/B71 UC15-E UMTS/HSDPA:900/2100MHz GSM/GPRS:900/1800MHz UC15-A UMTS/HSDPA:850/1900MHz GSM/GPRS:850/900/1900MHz |
GPS Receiver |
Skylab |
MCU Processor |
ARM7 STM103FRET6 |
Internal Memory |
4MB(10000 Waypoints + Events) |
Backup Battery |
1.3AH/3.6V |
LED Indicator |
Red: Power; Green: GPS; Yellow: Network |
Consumption |
Deep Sleep: <50μA; Standby:100-230mAh(3G)/100-200mAh(4G) |
Working Temp. |
-25℃~+60℃ |
Unit Size |
238*83*36mm |
Data Transmit |
SMS/GPRS/3G/4G Communication |
2. Description:

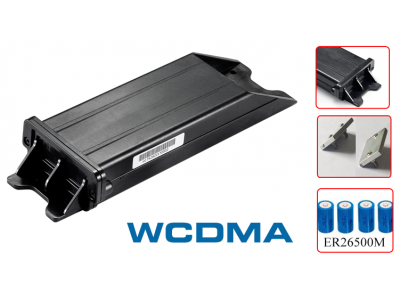

CT2000 is a self-powered terminal with 3G/4G and GPS connectivity for 4 years lifetime, which is able to get device coordinates and transfer via 3G or 4G or SMS.The device is perfectly suitable for applications where location acquirement of self-powered remote objects is needed.
It's adopted dual tracking technology with traditional satellite track and CellID track, which can bring the user tracking experience even in NO GPS signal area.
Track your assets wherever they are!
3. Typical Application For:
- Container Tracking
- Car Loans Tracking
- Rail-carriage Tracking
- Transit goods tracking
4. Battery working Life Time:
Total Tracking waypoints report times: 1560
Tracking frequency Scenes |
Lasting Work Time |
Report once Per Day |
1560Days=52Months=4.28Years |
Report Twice Per Day |
780Days=26Months=2.14year |
Report every 6Hours (4Times Per Day) |
390Days=13Months=1.1Year |
Report every 4Hours |
260Days=8.67Months |
Report every 2Hours |
130Days=4.3Months |
Report every 1Hours |
65Days |
Report every 30Minutes |
32.5Days |
Report every 5Minutes |
5.4Days |
You also can extend above working time by considering following factors:
- Static/Moving
- Remaining battery level
- GEO fencing Area status
Like default setting is every 4hours report data once, but when object in static, will switch to report every 10hours. By this you can extend your battery lasting time
5. Standard Package Contents:
- CT2000 Tracker x 1PC
- 6.5Ah ER26500M battery x 4PCS ( One time usage, non-rechargeable)
- USB Configuration Cable
- Information Paper card with User’s Guide, Configurator and Technical document download link
Notice:
* - Battery Lifetime is declared approximately and strongly depends on using conditions and device configuration (GSM/GPRS coverage, GPS visibility, configured parameters, temperature, place of mounting, batteries energy level etc).
