1.Features and Specifications
Item Name
Description
GSM/CDMA Module
QUECTEL M35
GSM Frequency
850/900/1800/1900MHz
GPS Receiver
Ublox 6M (Accuracy 1-3Meters in moving and open place)
GSM/GPS Antenna
Build-in
MCU Processor
ARM7 STM103FRCT6
Internal Memory
4MB(20000 Waypoints + Events)
Input Port
Ignition, Door, Panic, Charger Control, Microphone
Output Port
Buzzer, Immobilizer
Backup Battery
650mAH/4.2V
LED Indicator
Red: Power; Green: GPS; Yellow: GSM
Working Power Range
9-36V DC/1.8A
Consumption
Deep Sleep:<5mAh; Simple Sleep: < 30mAh; Standby:45-80mAh
Working Temp.
-25℃~+60℃
Unit Size
56*78*38mm
Weight
0.6Kg
Arm/Disarm
By Remote Control/SMS/GPRS
Data Transmit
SMS/GPRS Communication
2. Description:

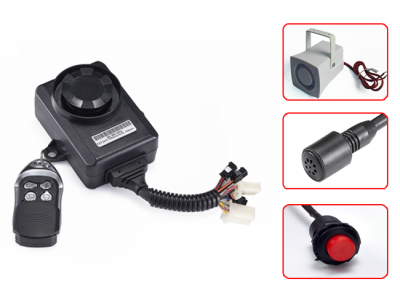

AS200 is a IP67 Rated GSM/ GPS alarm tracking kit.
This small unit is equipped with Quad Bands GSM/GPRS module, Hi-sensitivity GPS receiver ,Internal GSM/GPS antenna, RF Receiver and 3D Accelerometer.
Crash accident detection and Battery Kill protection are the best advantages for this system.
3.Data Report:
- Ignition On/Off
- Given time interval base
- Time, Direction, Ignition status, Mileage, Battery level,Door Status
4.Alarms Report:
- Door Open Alarm
- Ignition On Alarm
- Shock Alarm
- Accident Alarm
- Speed Over Alarm
- Power Disconnection Alarm
- Vehicle Battery Low
- Panic Help
- GEO Area In/Out
5.Remote Control Commands:
- Poll real time position
- Setup IP/Port, Device ID, Data report time interval
- Setup allow driving time period
- Stop engine / release startup
- Voice Listen-in authorization for once
6. Applications:
- Motorcycle/Scooters
- Car
- Truck
- Boats
7. Package Contents and optional Accessories:
1) AS200 GPS Box x 1PC
2) Microphone x 1PC
3) 2Pin Power wire harness x 1PC, 4Pin wire with Panic button harness x 1PC, 3Pin Wire harness x 1PC
4) Cut-Off relay x 1PC

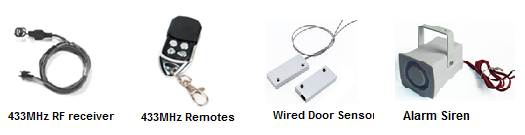

Accessories:
