1.Features and Specifications
Item Name
Description
4G LTE/WCDMA Module
QUECTEL EC-25/UC15
Frequency
EC-25
LTE -FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B20/B28A/B66/B71
UC15-E
UMTS/HSDPA:900/2100MHz
GSM/GPRS:900/1800MHz
UC15-A
UMTS/HSDPA:850/1900MHz
GSM/GPRS:850/900/1900MHz
GPS Receiver
Skylab (Accuracy 1-3Meters in moving and open place)
MCU Processor
ARM7 STM32F103VCT6
Internal Memory
4MB
Input Port
Ignition, Door, Panic, Quick-call, Microphone,iButton,
Fuel Voltage,Temperature Votage
Output Port
Buzzer, Immobilizer, Speaker
Audio Amplifier
3W
Backup Battery
520mAH/4.2V
LED Indicator
Red:Power; Green: GPS; Yellow: Network
Working Power Range
9-36V DC/1.8A
Consumption
Sleep: < 30mA, Standby:45-80mA
Working Temp.
minor 25℃~+60℃ E20
Unit Size
101*75*29.5mm
Weight
0.6Kg
One for Navigator Display;
Camera/Ultrasonic sensor/RFID share /Taxi Fare Meter share one Port
Data Transmit
SMS/GPRS/3G/4G Communication
LTE-TDD B38/B40/B41
RS232
2.Description:
TS100W is 3G/4G GPS tracking terminal for fleets’ vehicles with powerful application functions.
It’s featured with high quality and reliable performance approved by 20000 vehicles installed. The friendly access by USB port or SMS for configuration and debug are another favorite feature by system integrators.
3.Data Report:
- Ignition On/Off
- Given time interval base
- Given Distance interval base
- Given moving angle base
- Time, Direction, Ignition status, Mileage, Battery level,Door Open
4.Alarms Report:
- Speed Over Alarm
- Power Disconnection Alarm
- Drive in not-permit time period
- GEO Area In/Out
- Vehicle Battery Low
- Panic Help
- Towing Alarm
- Temperature high/low alert
- Fuel Theft Alarm
- Original car alarm event
5.Remote Control Commands:
- Poll real time position
- Setup IP/Port, Device ID, Data report time interval
- Setup allow driving time period
- Stop engine / release startup
- Voice Listen-in authorization for once
6. Applications:
- Bus
- Taxi Dispatch
- Company cars
- Special vehicles
- Private car
- Heavy Machinery
- Transportation trucks for multi-monitoring

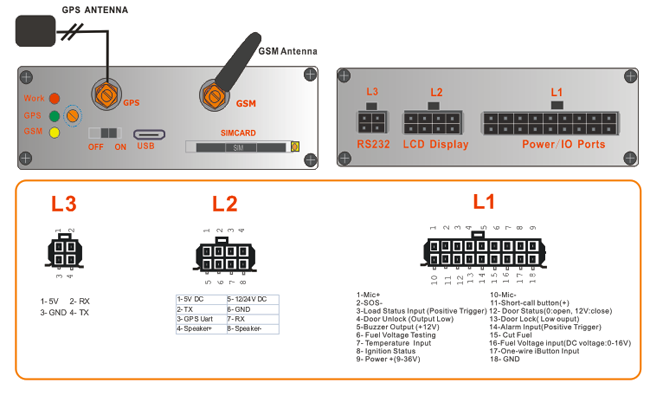

7. I/O Interface Introduction:
8.Package Contents:
- TS100W Tracker x 1PC
- GSM Antenna with SMA connector x 1PC
- GPS Antenna with SMA connector x 1PC
- Micrphone x 1PC
- Panic Button x 1PC
- Immobilizer Relay x 1PC
- Wire Harness x 1PC

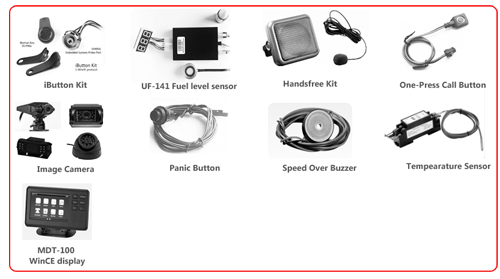

Optional Accessories:
