1.Features and Specifications
|
Item |
Description |
|
Dimension |
71*44*18mm |
|
Power range |
9-36V DC/1.5A |
|
Working Humidity |
5%~95% |
|
Operating Temperature |
‐30℃~75℃ |
|
Internal backup battery |
190mAh/4.2V |
|
Data Transmit |
SMS/GPRS Communication |
|
GSM chip |
FIBOCOM G510 |
|
GSM Quad bands |
850/900/1800/1900MHz |
|
GPS chip |
Skylab GPS Receiver (Sirf III chip) |
|
GPS Sensitivity |
-160dB |
|
GPS Position Accuracy |
10 Meters |
|
GPRS Null zone data storage |
2000 Waypoints |
|
Position report |
Time based and Distance based |
|
Alarm alerts |
GEO Fence, Speed over, Power tamper and Panic |
|
OTA |
Support |
|
I/O Ports
|
Ignition, Immobilizer, Panic, Door Status detection |
2. Description:
TS20 is a GSM/GPS tracker for car tracking application.
It's with superior GPS receiver sensitivity, fast TTFF and Quad bands (850/900/1800/1900MHz) design. And it can continuously report current position to backend server.
TS20 is developed by "openCPU" technology which brought lower cost, lower power consumption and fast response speed advantages.
3. Applications:
- Bus
- Taxi
- Company cars
- Special vehicles
- Private car

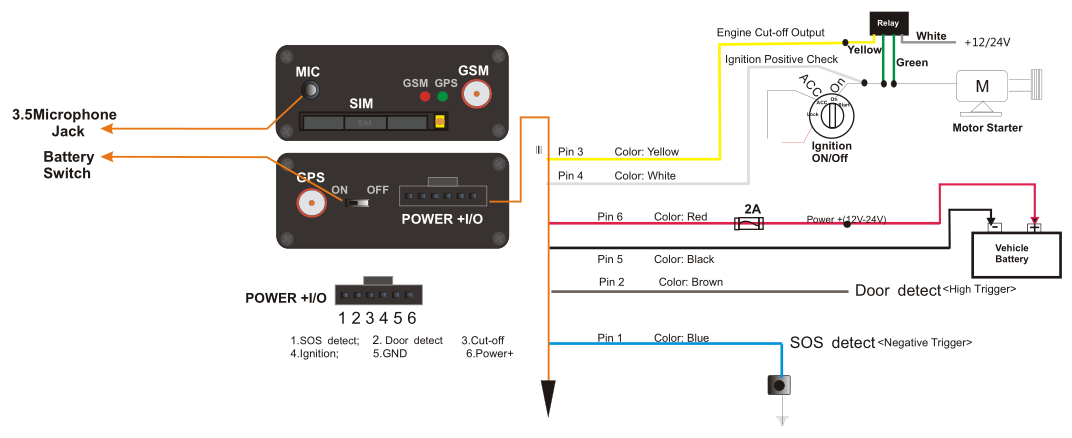

4. I/O Interface Introduction:
5. Package Contents and optional Accessories:
Tracker Wire Harness GSM antenna GPS antenna Immobilizer Relay
Optional Accessories:
Microphone
4. Technical Specifications:
- GSM / GPRS features:
. FIBOCOM G510 (Quad-bands)
. GPRS class 10
. SMS (text, data)
. Voice calling
- GPS features:
. Skylab GPS Receiver
. -160dB Sensitivity
- Hardware features:
. OpenCPU Technology
. 2000Waypoints for GPRS Null zone data storage
. External GSM/GPS Antenna
. Internal backup battery with 350mAH
. USB Port for configuration and firmware program
- Mechanical Size:
