1.Features and Specifications
|
Item |
Description |
|
Dimension |
66*63*25mm |
|
Power range |
9-36V DC/1.5A |
|
Working Humidity |
5%~95% |
|
Operating Temperature |
‐30℃~75℃ |
|
Internal backup battery |
190mAh/4.2V |
|
Data Transmit |
SMS/GPRS Communication |
|
GSM chip |
FIBOCOM G510 |
|
GSM Quad bands |
850/900/1800/1900MHz |
|
GPS chip |
Skylab GPS Receiver (Sirf III chip) |
|
GPS Sensitivity |
-160dB |
|
GPS Position Accuracy |
10 Meters |
|
GPRS Null zone data storage |
2000 Waypoints |
|
Position report |
Time based and Distance based |
|
Alarm alerts |
GEO Fence, Speed over, Power tamper |
|
OTA |
Support |
|
I/O Ports
|
Ignition, Immobilizer，
Door status detect, Panic(SOS) detect
|
2. Description:
TS10 is a IP67 Rated GSM/GPS tracker for car, motorcycle, scooters and e-bikes.
It's with superior receiver sensitivity, fast TTFF and Quad bands (850/900/1800/1900MHz) design. And it can continuously report current position to backend server.
TS10 is developed by "openCPU" technology which brought lower cost, lower power consumption and fast response speed advantages. It’s reputed with have industrial level performance but on MTK solution pricing.
3. Applications:
- Motorcycle/Scooters/E-bikes
- Car
- Truck

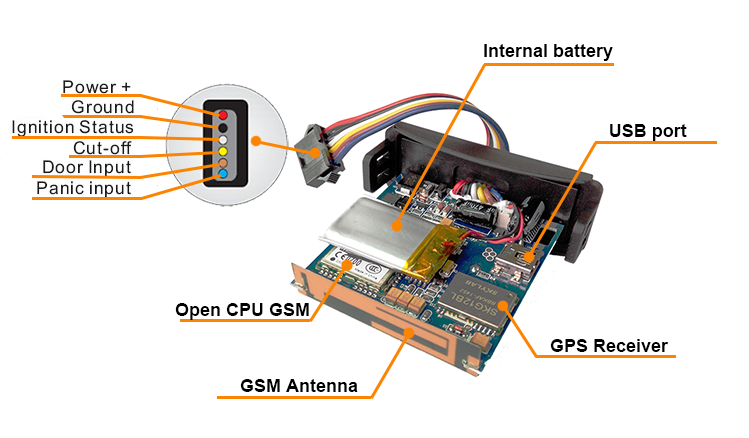

4. I/O Interface Introduction:
5. Package Contents:
Tracker Wire Harness Immobilizer Relay Fastening Tape
