1 Features and Specification
1.1 Features
This cost-effective GPS tracker is built for versatility, operating on a wide voltage range from 9V to 90V. It is the perfect fit for various vehicles like cars, trucks, and motorcycles.
Key features include:
-
Real-Time Tracking & Location Query
-
Historical Trips Playback
-
Geo-Fence with Alerts
-
Main Power Failure Alarm
-
Vibration & Displacement Alarm
-
Remote Vehicle Immobilization
A simple, all-in-one solution for efficient vehicle security and management.
1.2 Product Parameters
|
4G/GSM Features |
Communication Chip |
● |
ARS 1603 |
|
|
Communication Band |
● |
LTE/4G |
LTE-FDD:B1/B3/B5/B8 |
|
|
LTE-TDD:B34/B38/B39/B40/B41 |
||||
|
GSM/EDGE/2G |
900/1800 MHz |
|||
|
SIM Card |
● |
Standard SIM Card |
||
|
GPS/BD Positioning Features |
Positioning Chip |
● |
ZKMicro |
|
|
Positioning Method |
● |
BD+GPS |
||
|
Cold Start |
● |
Average. 30 Seconds |
||
|
Hot Start |
● |
Average. 1 Second |
||
|
Tracking Sensitivity |
● |
-162 dBm |
||
|
Capture Sensitivity |
|
-158 dBm |
||
|
Positioning Antenna |
● |
Built-in Antenna |
||
|
GPS Bands |
● |
L1: 1575.42±1.023MHz |
||
|
Beidou Bands |
● |
B1: 1561.098±2.046MHz |
||
|
Satellites Channels |
● |
136 |
||
|
Accuracy |
● |
Precise Positioning < 5m |
||
|
Timing Accuracy |
● |
20ns |
||
|
Speed Accuracy |
● |
0.1m/s CEP |
||
|
Maximum Acceleration |
● |
4g |
||
|
Maximum Speed |
● |
515m/s |
||
|
Maximum Height |
● |
18000m |
||
1.3 Product Accessories:
Standard: Device/Power Cable/Quick User Guideline/Double-sided Stickers
Optional: Microphone, SOS Button, Relay
1.4 Terminal LED Working Status
1.4.1 Yellow LED ( GSM Signal Status )
|
LED Status |
Description |
|
Slowly Flickering |
GSM Initialization |
|
Fast Flickering |
Failed Reading Card |
|
On |
GPRS Communication is normal/has been online |
|
Off |
GSM Sleeping / Disconnect with power |
1.4.2 Blue LED ( GPS Signal Status )
|
LED Status |
Description |
|
Slowly Flickering |
GPS Searching Signal |
|
Fast Flickering |
GPS Chip doesn’t work |
|
On |
GPS Positioned |
|
Off |
GPS Sleep/ Disconnect with Power |

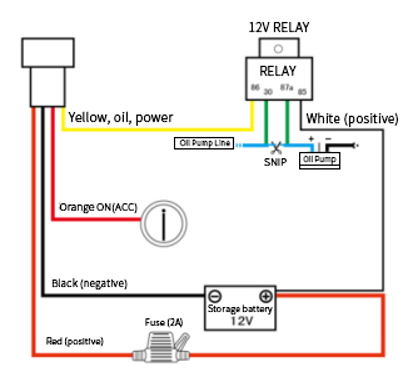

1.5 Schematic Diagram of Terminal Wiring
